Intermediate Shaft Component Connection Note

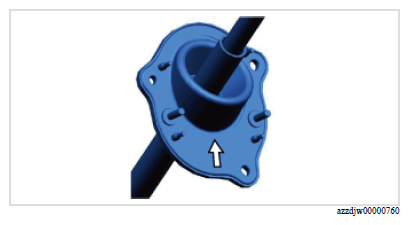

- Install with the arrow marks on the dust cover pointed upwards.
 Courtesy of MAZDA MOTORS CORP.
|

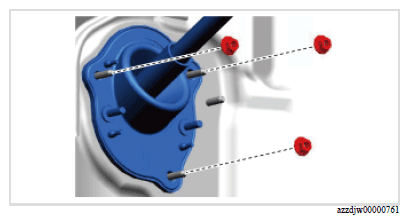

- Install the nuts.
 Courtesy of MAZDA MOTORS CORP.
|

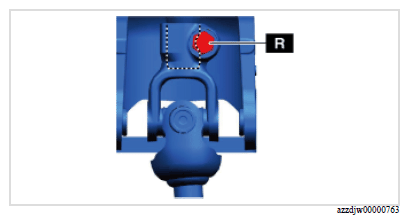

- Align with the U-shape groove of the steering column and install a new joint bolt.
 Courtesy of MAZDA MOTORS CORP.
|

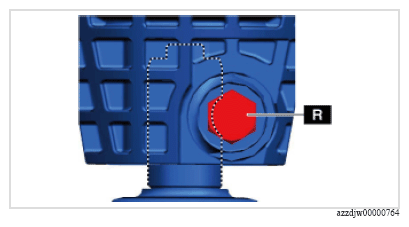

- Align with the U-shape groove of the steering gear (pinion) and install a new joint bolt.
 Courtesy of MAZDA MOTORS CORP.
|
