Remove Trunk Board (Rear): Notes

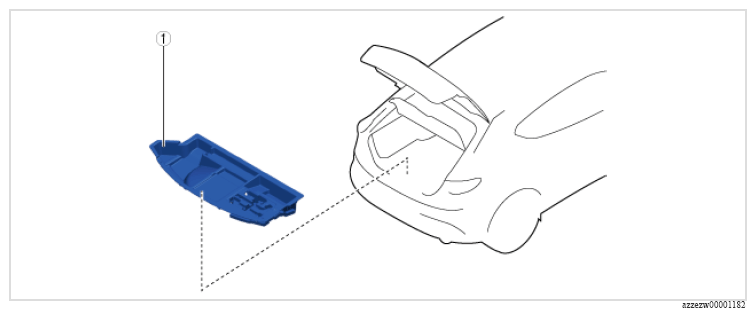

  1. Remove using the procedure shown in the figure below.
    G16708826Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Trunk board (rear)
    (See Trunk board (rear) removal note )
  2. Install in the reverse order of removal.
