PCM connector connection note
CAUTION:
- Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.
- If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

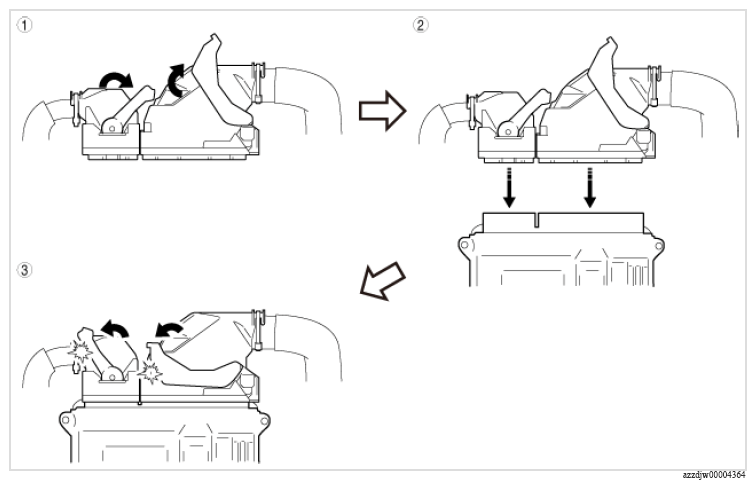

- Connect the PCM connectors shown in the figure.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| (1) (2)... | Servicing procedure |
