Steering Wheel Bezel Installation Note

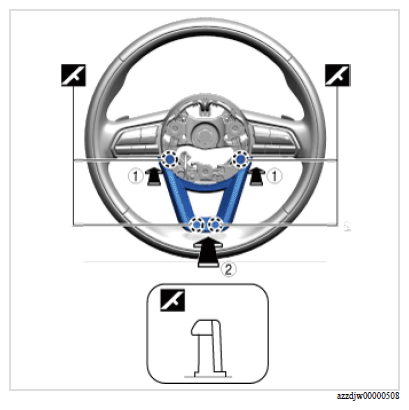

  1. Install the steering wheel bezel as shown in the figure.
G16712249Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
