Remove Middle Pipe

  1. Remove in the order indicated in the table.

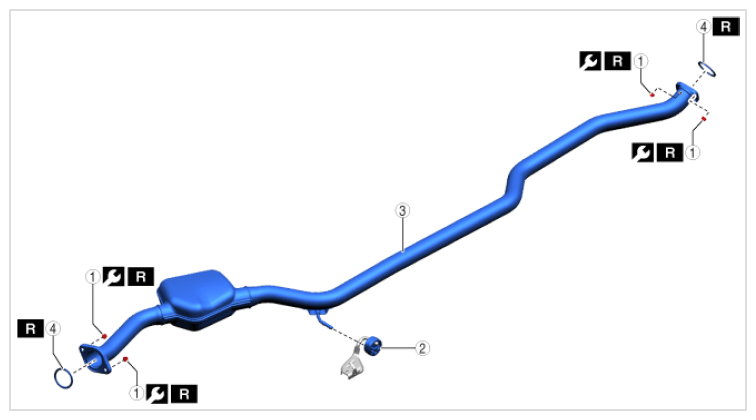

Fig 1: Middle Pipe Nut With Torque Specifications
G16707262Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Nut   44.5 N.m {4.55 kgf.m, 32.8 ft.lb}
2 Rubber - -
3 Middle pipe - -
4 Gasket   -
