Selector lever knob installation note

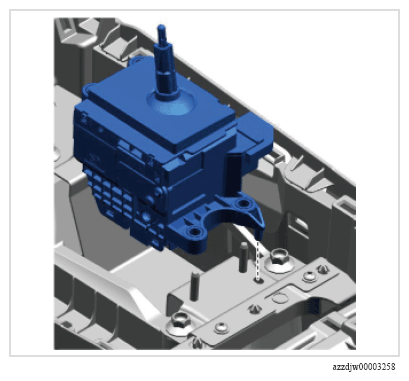

  1. Insert the pin of the select lever into the positioning hole.
    G16708886Courtesy of MAZDA MOTORS CORP.
