Remove Oil Filler Cap

  1. Remove in the order indicated in the table.

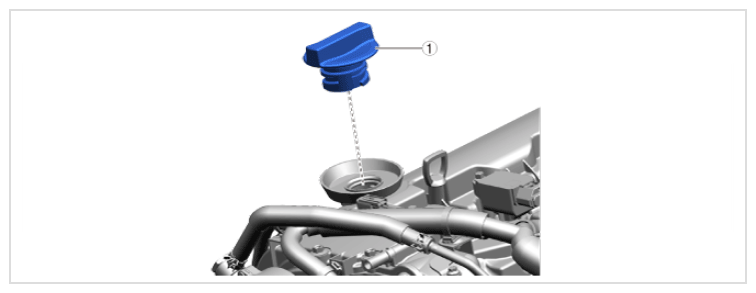

G16707128Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Oil filler cap
