Remove Engine Oil Level Sensor

Remove in the order indicated in the table.

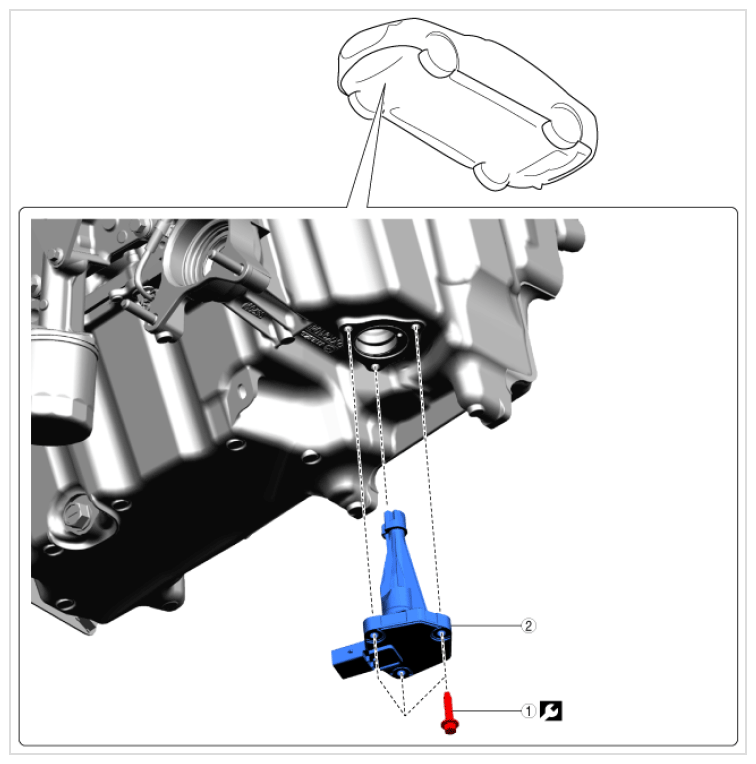

Fig 1: Engine Oil Level Sensor Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt	9 N.m {92 kgf.cm, 80 in.lb}
2	Engine oil level sensor	-
