Remove Battery Tray

  1. Remove in the order indicated in the table.

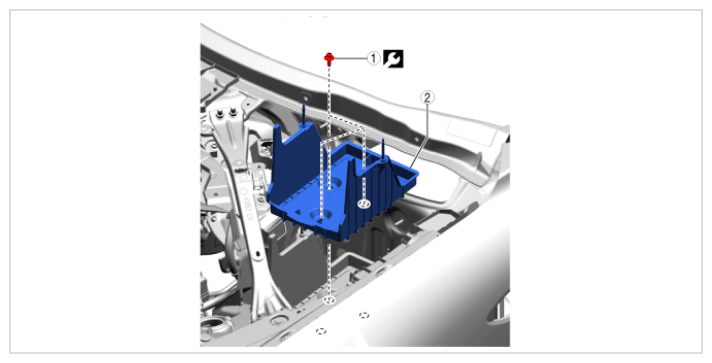

Fig 1: Battery Tray And Bolt With Torque Specification
G16704345Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Step Part name
1 Bolt 26 N.m {2.65 kgf.m, 19.2 ft.lbf}
2 Battery Tray -
