Remove Windshield: Notes

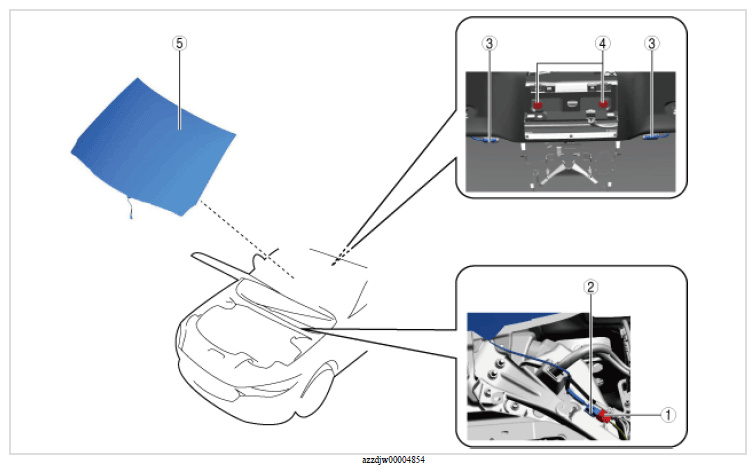

- Remove using the procedure shown in the figure.
PART NAME DESCRIPTION
| Procedure | Part name | Applicable condition |
|---|---|---|
| 1 | Connector | With windshield wiper de-icer |
| 2 | Wiring harness clip | With windshield wiper de-icer |
| 3 | TV antenna amplifier (front) | With TV tuner unit |
| 4 | Fastener | - |
| 5 | Windshield (See PRECAUTIONS WHEN REMOVING THE FRONT WINDOW GLASS ) (See POINTS TO NOTE WHEN INSTALLING FRONT WINDOW GLASS ) |
- |
