Remove Sensor Cover: Notes

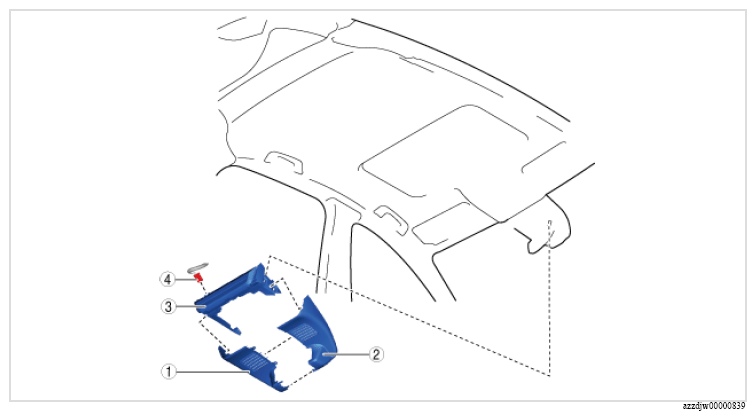

  1. Remove using the procedure shown in the figure.
G16715317Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Sensor cover A
(See Sensor cover A removal note ).
2 Sensor cover B
(See Sensor cover B removal note ).
3 Sensor cover C
(See Sensor cover C removal note ).
4 Connector
