Remove Indicator Unit

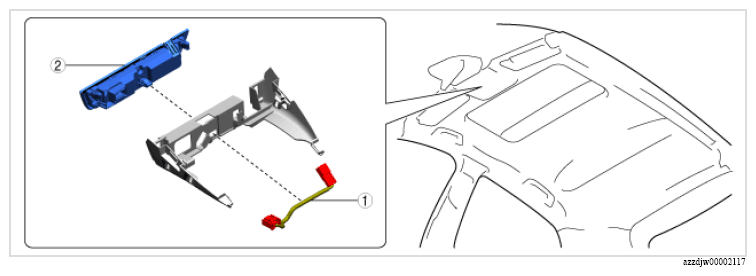

  1. Remove using the procedure shown in the figure.
    G16715321Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Indicator unit short-cord
    2 Indicator unit
