Remove Driver Side A-Pillar Trim: Notes

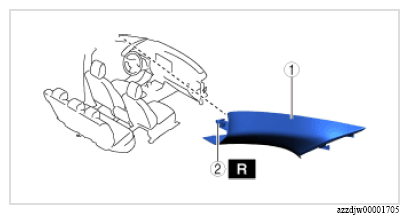

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
G16710215Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 A-pillar trim
(See A-pillar trim removal note  ).
-
2 Clip (with grommet)
(See Grommet removal note  ).
Replacement part
