Remove Driver Side Power Window Subswitch (Rear): Notes

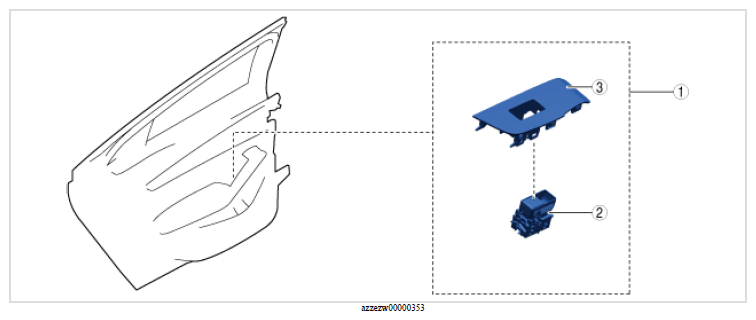

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
G16695687Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Power window subswitch component
(See Power window subswitch component removal note  ).
2 Power window subswitch
(See Power window subswitch removal note  ).
3 Power window subswitch cover
