Power window subswitch component removal note

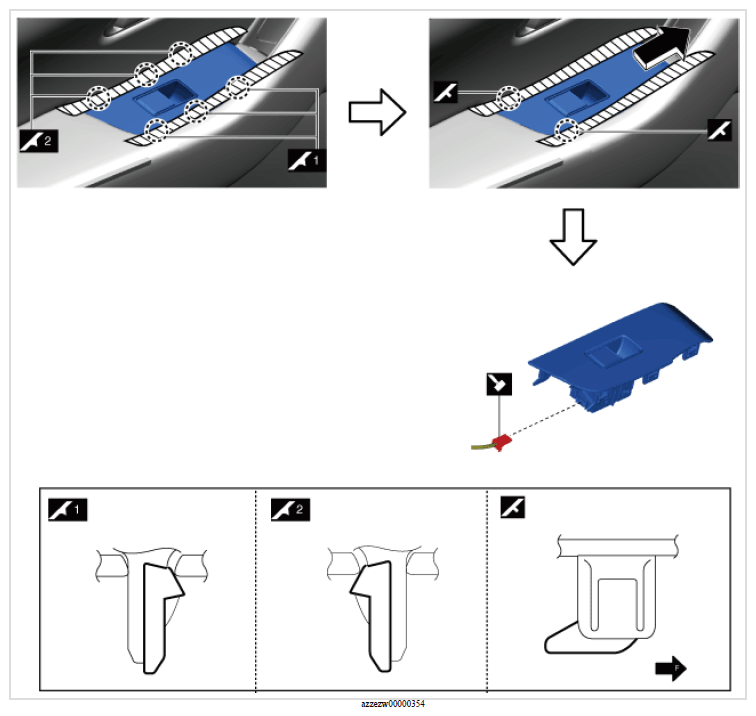

  1. Remove the power window subswitch component as shown in the figure below.
    • the figure below shows the left side (same as right side).
    G16695688Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    Protective tape attachment positions
