Power window subswitch component removal note

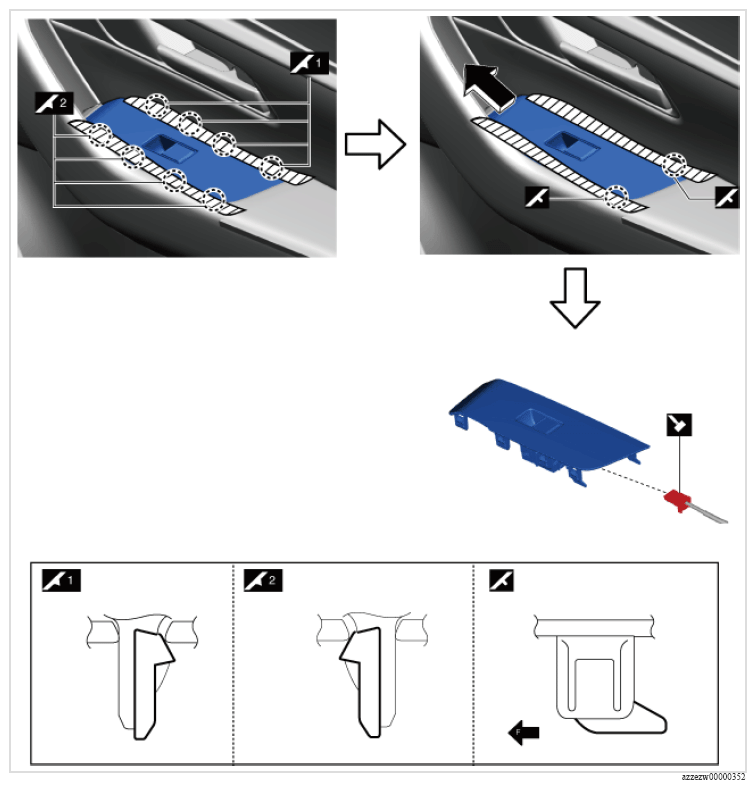

  1. Remove the power window subswitch component as shown in the figure below.
G16715841Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
Protective tape attachment positions
