Sensor Cover Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION
.)

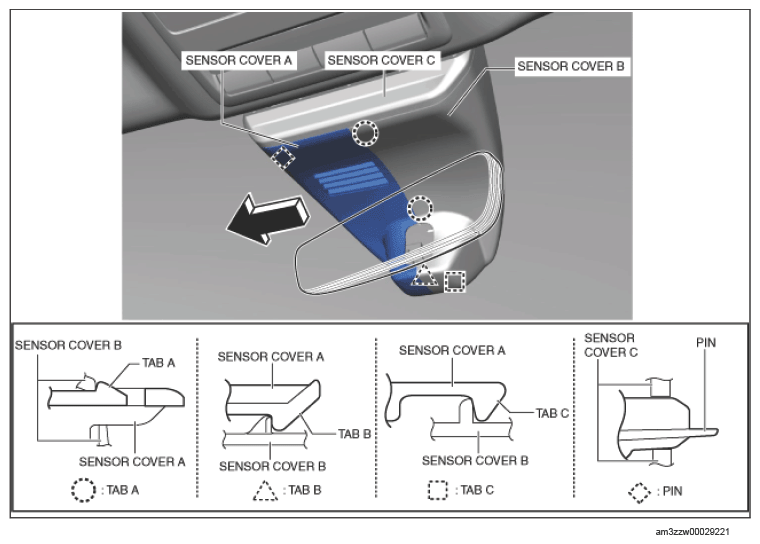

- Pull the sensor cover A in the direction of the arrow shown in the figure below and remove sensor cover A while detaching the pin and tabs A, tab B, and tab C.
 Courtesy of MAZDA MOTORS CORP.
|

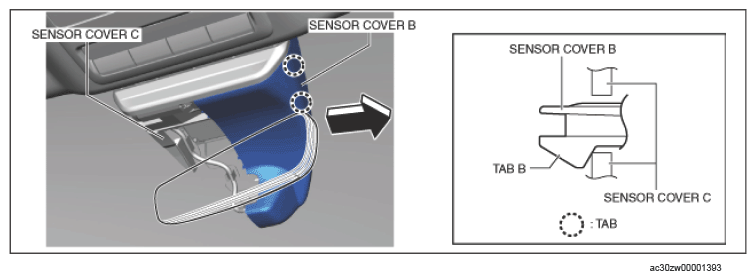

- Pull sensor cover B in the direction of the arrow shown in the figure below and remove sensor cover B while detaching the tabs.
 Courtesy of MAZDA MOTORS CORP.
|

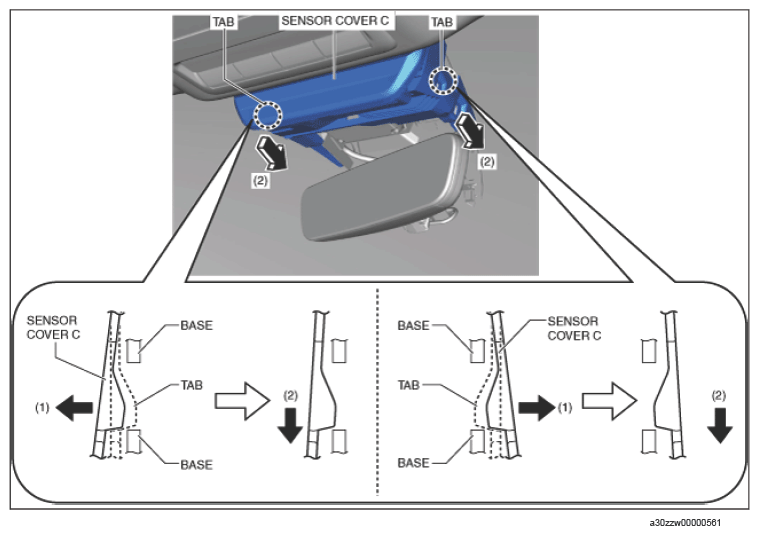

- Move the tab of sensor cover C in the direction of arrow (1) shown in the figure below.
 Courtesy of MAZDA MOTORS CORP.
|
- Pull sensor cover C in the direction of arrow (2) shown in the figure above and remove sensor cover C and the indicator unit as one unit while detaching the tabs.

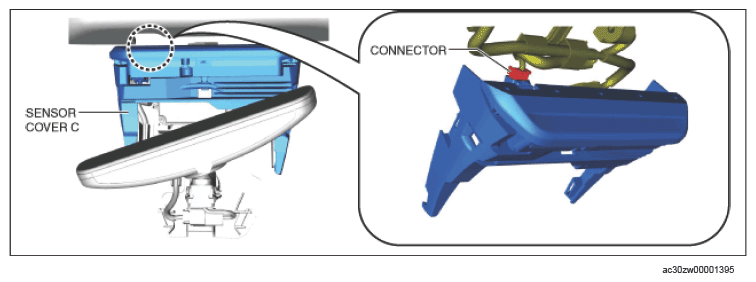

- Disconnect the connector.
 Courtesy of MAZDA MOTORS CORP.
|
- Install in the reverse order of removal.
