Generator Removal Note

NOTE:

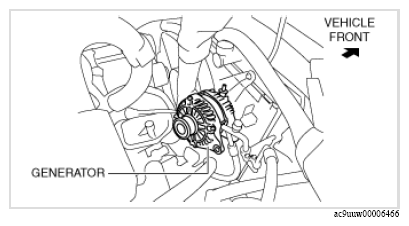

  • Remove the generator from above the engine compartment.
G16372626Courtesy of MAZDA MOTORS CORP.
