Intermediate Shaft Installation Note

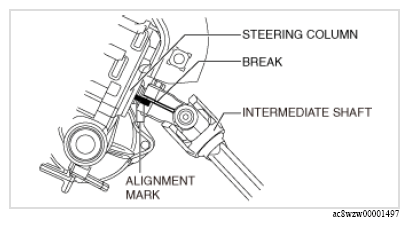

- Align the intermediate shaft with the alignment marks on the steering column made before removing the intermediate shaft and install the intermediate shaft.
 Courtesy of MAZDA MOTORS CORP.
|
NOTE:
- When replacing the steering column with a new one, place an alignment mark on the new part in the same position as the removed steering column.
- Install a new joint bolt.
 Courtesy of MAZDA MOTORS CORP.
|

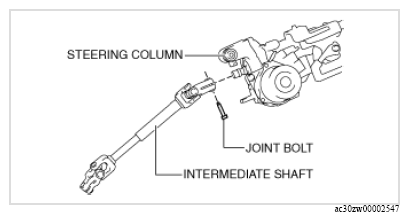

- Verify that the joint bolt flange is seated correctly.
