Intermediate Shaft Removal Note

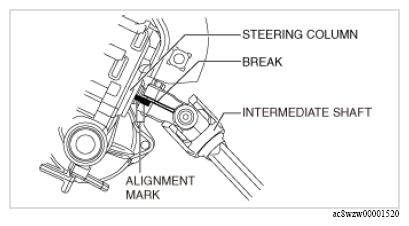

- Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Place alignment marks on the steering gear (pinion) and intermediate shaft as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|

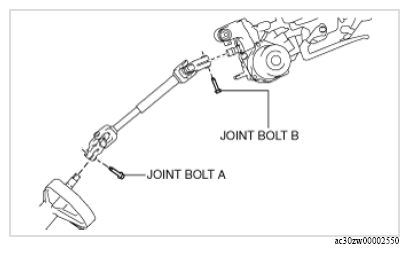

- Remove the joint bolts in the order of joint bolts A and B.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the intermediate shaft.
