Negative Battery Terminal Disconnection
- Switch the ignition to off.
CAUTION:
- Be careful not to contact the positive battery terminal.
NOTE:
- The positive battery cable nut cannot be removed to prevent it from falling off.
- Disconnect the negative battery terminal.

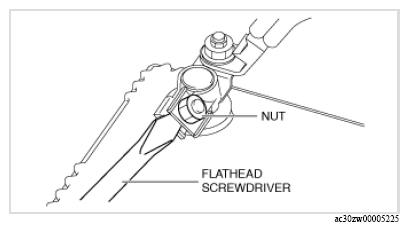

- When disconnecting the plastic deformed negative battery terminal, expand the gap of the negative battery terminal using a flathead screwdriver, and remove the nut.
 Courtesy of MAZDA MOTORS CORP.
|
