Rear Power Window Regulator Installation Note
- The rear power window regulator installation work can be facilitated by performing the following procedure:

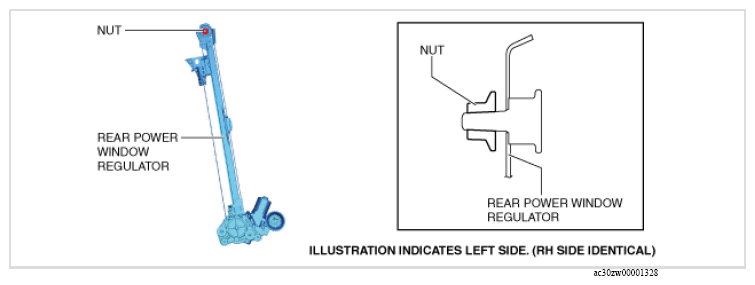

- Temporarily tighten the nut shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|

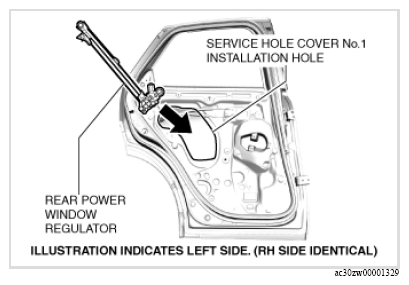

- Insert the rear power window regulator from the service hole cover No. 1 installation hole.
 Courtesy of MAZDA MOTORS CORP.
|

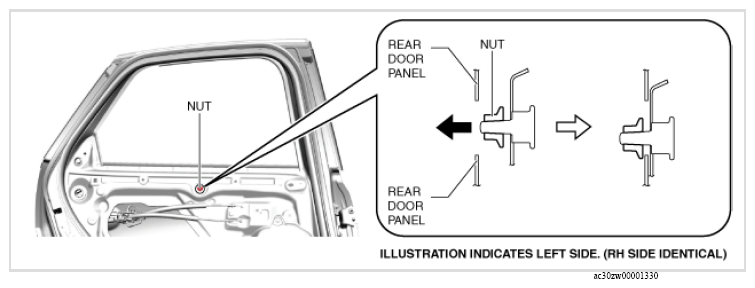

- Hook the temporarily tightened nuts to the rear door panel.
 Courtesy of MAZDA MOTORS CORP.
|
