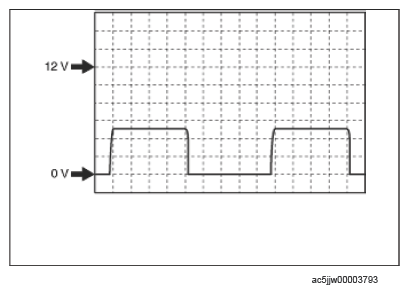

Inspection Using an Oscilloscope (Reference)
 Courtesy of MAZDA MOTORS CORP.
|
- Connection terminal: D (+) ↔ body ground (-) E (+) ↔ body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
