Front ABS Wheel-Speed Sensor Wiring Harness And Clip Disconnection Note

NOTE:

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure below is required.

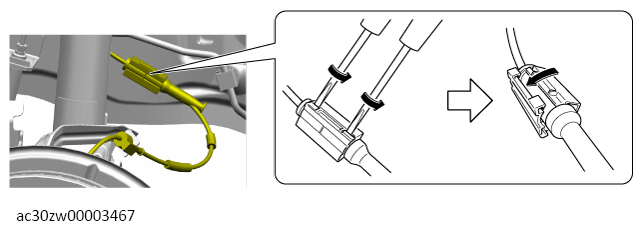

1. Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the figure below.

   Courtesy of MAZDA MOTORS CORP.

2. Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the figure below.

Courtesy of MAZDA MOTORS CORP.
