Keyless Beeper Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Disconnect joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  4. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

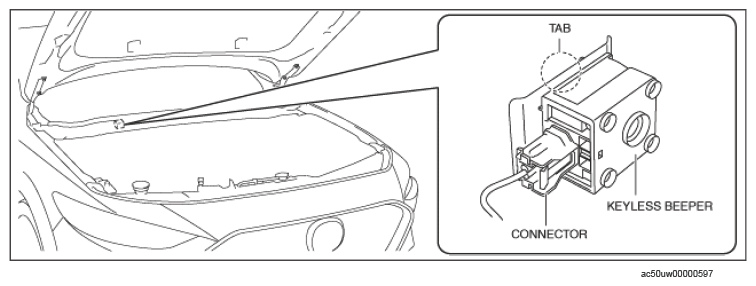

    G15742892Courtesy of MAZDA MOTORS CORP.
  6. Release the tab on the keyless beeper from the bracket.
  7. Remove the keyless beeper.
  8. Install in the reverse order of removal.
