M-MDS Connecting Procedure

NOTE:

Do not place the M-MDS in the vehicle while programming the immobilizer system.

Fully lower the door glass.
Connect the M-MDS to the DLC-2.
Place the M-MDS outside the vehicle.
CAUTION:
- Cover the vehicle body with a rag so as not to damage the vehicle body with the cable.

Procedure for communication between coil antenna and remote transmitter

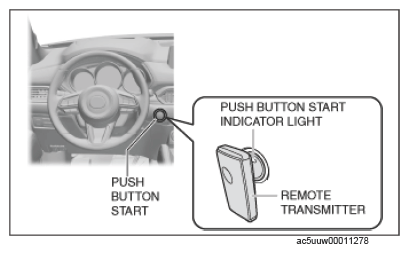

While the push button start indicator light (green) is flashing, touch the center of the push button start with the center of the brand emblem of the remote transmitter.

G15642272

Courtesy of MAZDA MOTORS CORP.

NOTE:

The coil antenna is integrated with the push button start.
