Set Plate Component Installation Note

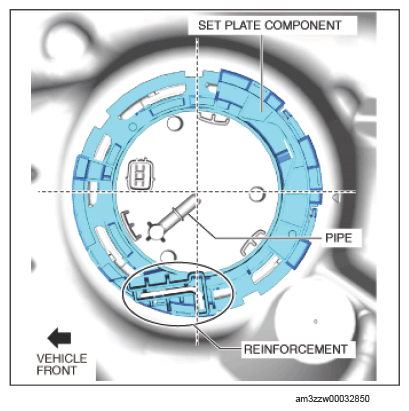

  1. Align the reinforcement part of the set plate component near the pipe area of the fuel pump unit as shown in the figure below and assemble.
G14579287Courtesy of MAZDA MOTORS CORP.
