Cooling Fan Control Signal
 Courtesy of MAZDA MOTORS CORP.
|
PCM terminals

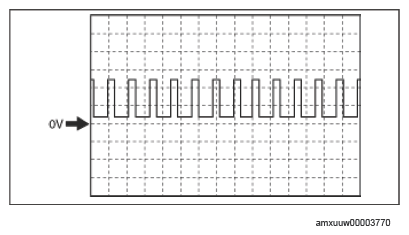

Oscilloscope setting
- 5 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
- Idle (after warm up and no load)
