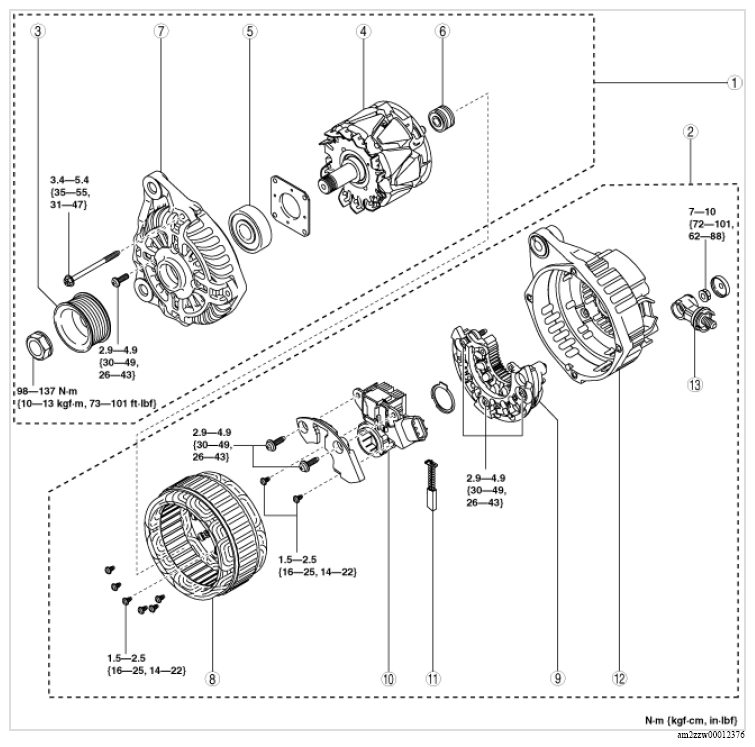

Generator Disassembly/Assembly: Notes
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP. PART DESCRIPTION
| Component no. |
Refer to |
| 1 |
Rotor component |
| 2 |
Stator coil component |
| 3 |
Pulley |
| 4 |
Rotor |
| 5 |
Front bearing |
| 6 |
Rear bearing |
| 7 |
Front cover |
| 8 |
Stator coil |
| 9 |
Rectifier |
| 10 |
Brush holder |
| 11 |
Brush
(See BRUSH DISASSEMBLY NOTE .)
(See BRUSH ASSEMBLY NOTE .) |
| 12 |
Rear cover |
| 13 |
Terminal B component |
