DTC B1B91-13: Tilt Motor And Position Sensor Circuit Malfunction [Position Memory Control Module]: Notes

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1B91:13 (POSITION MEMORY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

Description	Tilt motor and position sensor circuit malfunction
Detection condition	Position memory control module (front seat) detects the following conditions during the tilt motor operation control: Detects 4 times that current flowing to the tilt motor is less than 1 A. Detects for 0.2 s that there is no change in the tilt sensor pulse. Position memory control module (front seat) detects any of the following conditions during the tilt motor not operation control: Detects 4 times that current flowing to the tilt motor exceeds 10 A. Detects 4 times that current flowing to the tilt motor exceeds 1 A and a change in the tilt sensor pulse 5 times within 1 s. Position memory control module (front seat) detects for 5 s that there is no change in the tilt sensor pulse during the tilt motor operation control.
Fail-safe	Memory clearing: If there is a malfunction in the tilt position sensor, clear all the memory positions. Memory seat positioning using position memory switch and remote transmitter: If there is a malfunction in the tilt position sensor, inhibits all memory seat positioning. If there is a malfunction in the tilt motor, inhibits tilt motor seat positioning. Tilt motor seat positioning using power seat switch: If there is a malfunction in the tilt motor, inhibits tilt motor seat positioning. Memory registration using position memory switch and remote transmitter: If there is a malfunction in the tilt position sensor, inhibits the memory registration. If there is a malfunction in the tilt motor and the malfunction is caused by short circuit, inhibits the memory registration.

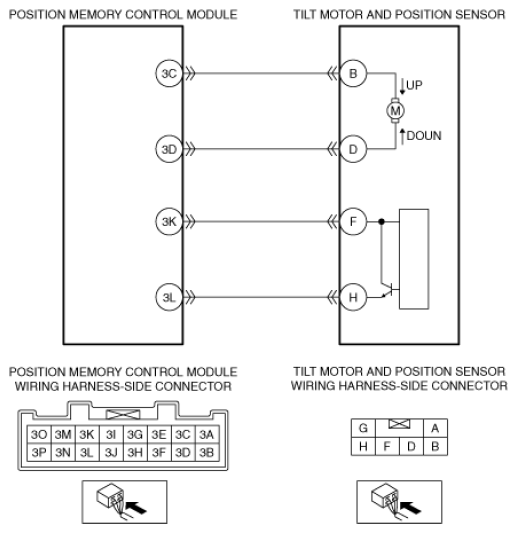

Possible cause	Tilt motor and position sensor connector or terminal malfunction Position memory control module (front seat) connector or terminal malfunction Short to ground in wiring harness between the following terminals: Position memory control module (front seat) terminal 3C-Tilt motor and position sensor terminal B Position memory control module (front seat) terminal 3D-Tilt motor and position sensor terminal D Position memory control module (front seat) terminal 3K-Tilt motor and position sensor terminal F Position memory control module (front seat) terminal 3L-Tilt motor and position sensor terminal H Short to power supply in wiring harness between the following terminals: Position memory control module (front seat) terminal 3C-Tilt motor and position sensor terminal B Position memory control module (front seat) terminal 3D-Tilt motor and position sensor terminal D Position memory control module (front seat) terminal 3K-Tilt motor and position sensor terminal F Position memory control module (front seat) terminal 3L-Tilt motor and position sensor terminal H Open circuit in wiring harness between the following terminals: Position memory control module (front seat) terminal 3C-Tilt motor and position sensor terminal B Position memory control module (front seat) terminal 3D-Tilt motor and position sensor terminal D Position memory control module (front seat) terminal 3K-Tilt motor and position sensor terminal F Position memory control module (front seat) terminal 3L-Tilt motor and position sensor terminal H Front seat malfunction Tilt motor and position sensor malfunction Position memory control module (front seat) malfunction
Courtesy of MAZDA MOTORS CORP.
