Driver's side
WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)

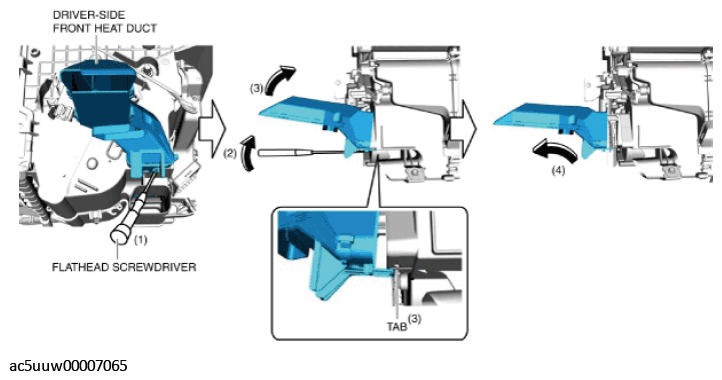

- Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).
- Detach the tab while lifting up the driver-side front heat duct in the direction of the arrow (3).
- Remove the driver-side front heat duct (4).
- Install in the reverse order of removal.
