Tie-Rod End Replacement: Removal
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION
.)

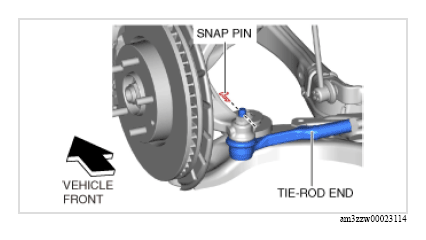

- Remove the snap pin from the tie-rod end.
 Courtesy of MAZDA MOTORS CORP.
|

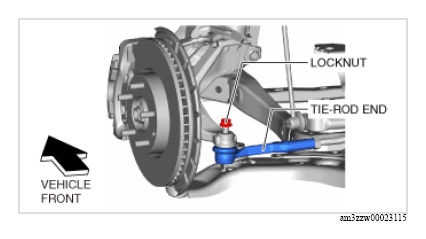

- Loosen the locknut of the tie-rod end.
 Courtesy of MAZDA MOTORS CORP.
|

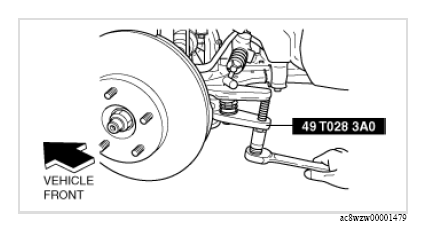

- Detach the tie-rod end from the steering knuckle using the SST.
 Courtesy of MAZDA MOTORS CORP.
|

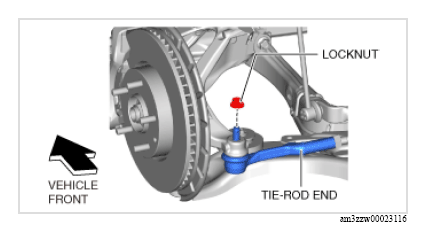

- Remove the locknut of the tie-rod end.
 Courtesy of MAZDA MOTORS CORP.
|

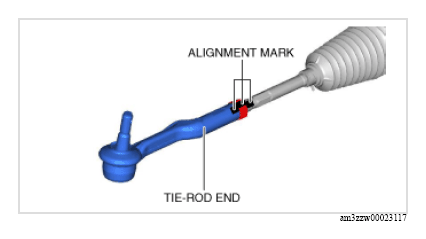

- Place alignment marks as shown in the figure for reference in tie-rod end assembly.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the tie-rod end.
 Courtesy of MAZDA MOTORS CORP.
|
