Tilt/Telescope Mechanism Operation Inspection

CAUTION:
  • Do not release the lock of the adjuster lever except when the steering column is securely assembled to the dashboard member. Otherwise, it could damage the steering column and the other parts.

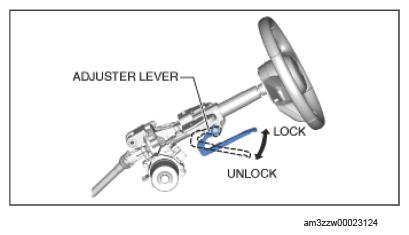

  1. Inspect the tilt/telescoping mechanism operation for the following.
    G14581965Courtesy of MAZDA MOTORS CORP.
  2. The adjuster lever can be released smoothly from the locked condition.
  3. The steering shaft can be secured by locking the adjuster lever.
