Joint Cover Installation Note

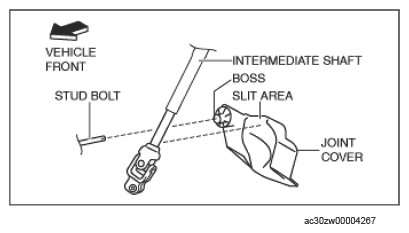

- Assemble the boss of the joint cover to the stud bolt on the vehicle side.
 Courtesy of MAZDA MOTORS CORP.
|

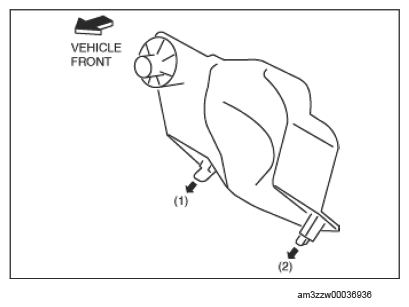

- Engage the tabs in the order of arrows (1) and (2) shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
