Structural View

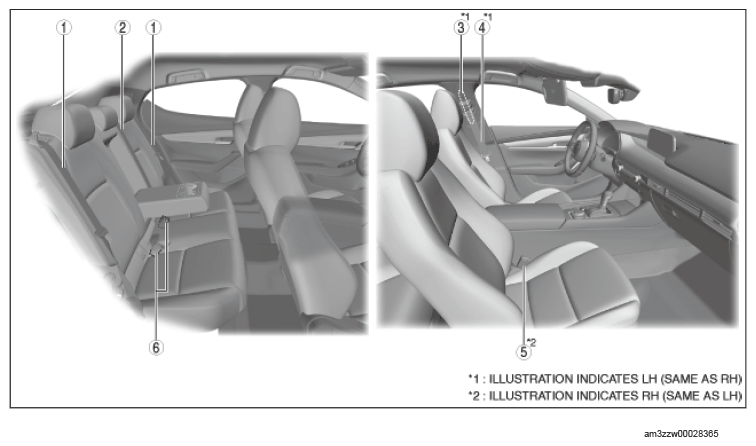

G14582627Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

Component no. Refer to
1 Rear seat belt
(See REAR SEAT BELT REMOVAL/INSTALLATION [(US)] .)
(See SEAT BELT INSPECTION [(US)] .)
2 Rear center seat belt
(See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION [(US)] .)
3 Adjuster anchor
(See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
4 Front seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION [(US)] .)
5 Front buckle
(See FRONT BUCKLE REMOVAL/INSTALLATION [(US)] .)
(See BUCKLE SWITCH INSPECTION [(US)] .)
6 Rear buckle
(See REAR BUCKLE REMOVAL/INSTALLATION .)
(See BUCKLE SWITCH INSPECTION [(US)] .)
