Front Door Speaker Removal/Installation

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the procedure is performed while holding the front door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Front door speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    2. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    3. Power window main switch (to remove from driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    4. Power window sub switch (to remove from passenger's side) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    5. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)

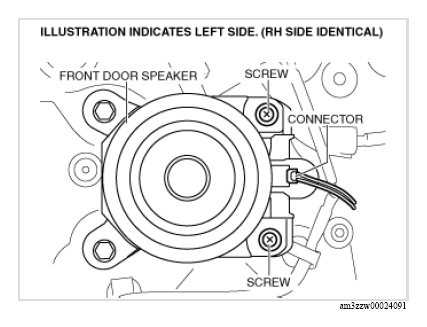

  3. Remove the screws.
    G13179826Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.

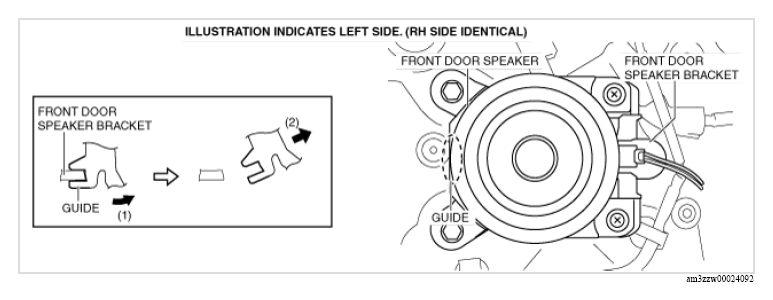

  5. Move the front door speaker in the direction of the arrow in the order of (1), (2) while detaching the guide.
    G13179827Courtesy of MAZDA MOTORS CORP.
  6. When removing the front door speaker bracket, perform the following procedure:
    1. Remove the bolts.

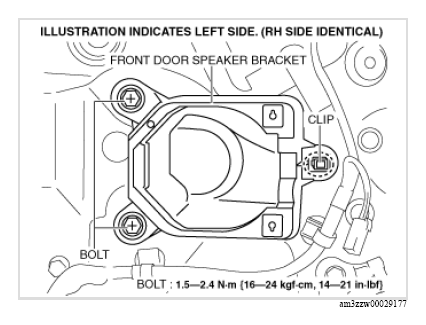

      Fig 1: Front Door Speaker Bracket Bolts With Torque Specification
      G13179828Courtesy of MAZDA MOTORS CORP.
    2. Remove the clip.
    3. Remove the front door speaker bracket.
  7. Install in the reverse order of removal.
