Generator Disassembly/Assembly [VIN Y (Us)]

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

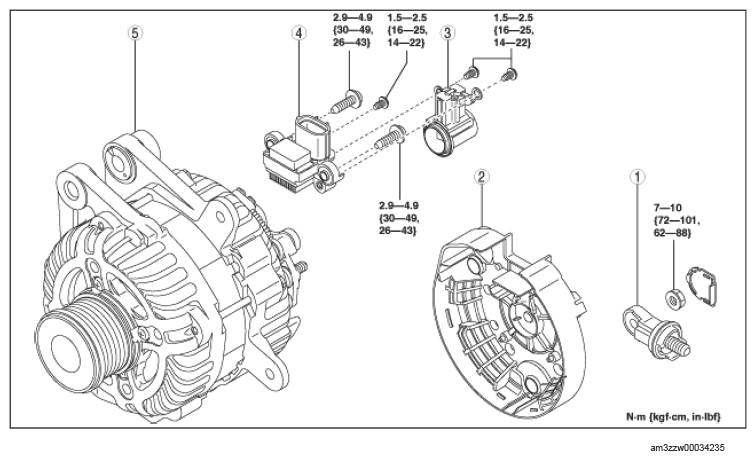

Fig 1: Generator Components With Torque Specification (VIN Y, US)

G14579743

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component no.	Refer to
1	Terminal B component
2	Rear cover
3	Brush holder
4	Regulator assy
5	Generator
