No. 8 Auto Hold Does Not Work: Notes

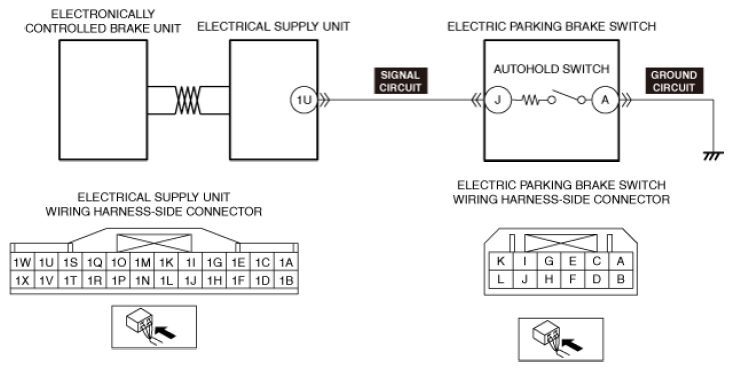

NO. 8 AUTO HOLD DOES NOT WORK (ELECTRONICALLY CONTROLLED BRAKE SYSTEM) POSSIBLE CAUSE
| Troubleshooting item |
Autohold does not work |
| Possible cause |
- Stuck AUTOHOLD switch in off position
- Electrical supply unit (ESU) detects a malfunction.
- Open circuit in AUTOHOLD switch signal circuit
- Open circuit in AUTOHOLD switch ground circuit
|
 Courtesy of MAZDA MOTORS CORP.
|
