Brake Pipe Installation Note

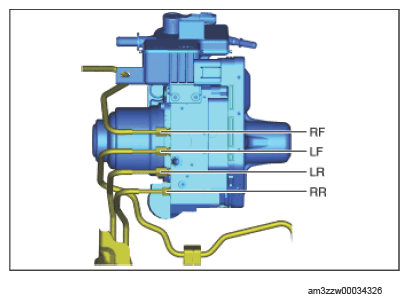

- Align the marks made before removal and install the brake pipe to the electronically controlled brake unit and brake pipe joint referring to the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
