SUNVISOR Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)

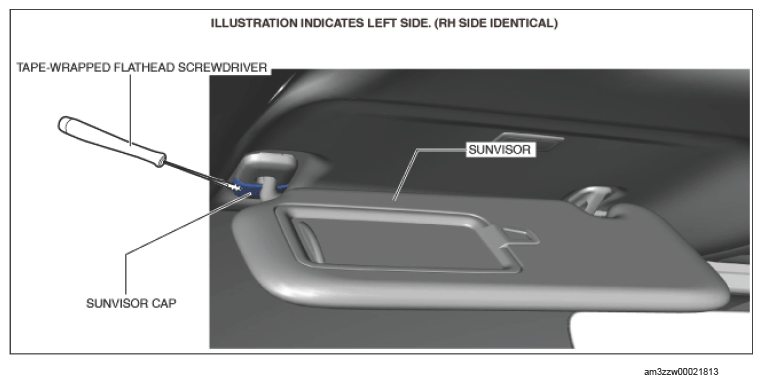

  2. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
    G14584052Courtesy of MAZDA MOTORS CORP.

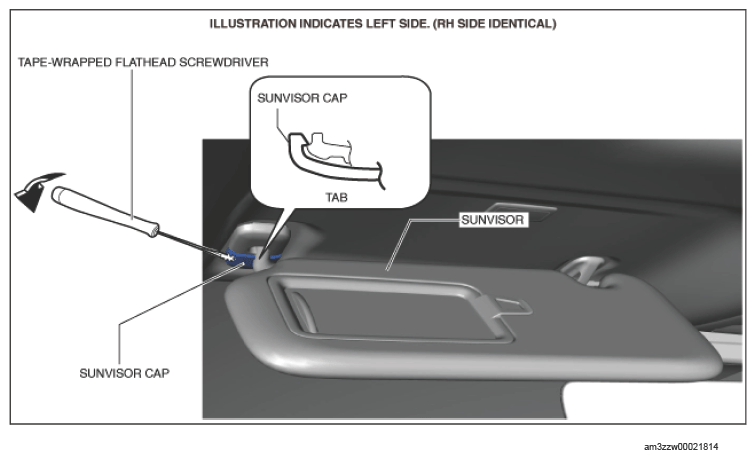

  3. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure, detach the tab, and remove the sunvisor cap.
    G14584053Courtesy of MAZDA MOTORS CORP.

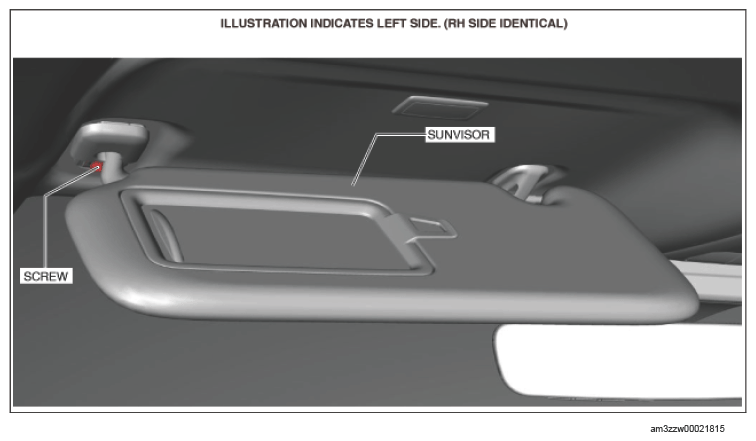

  4. Remove the screw.
    G14584054Courtesy of MAZDA MOTORS CORP.

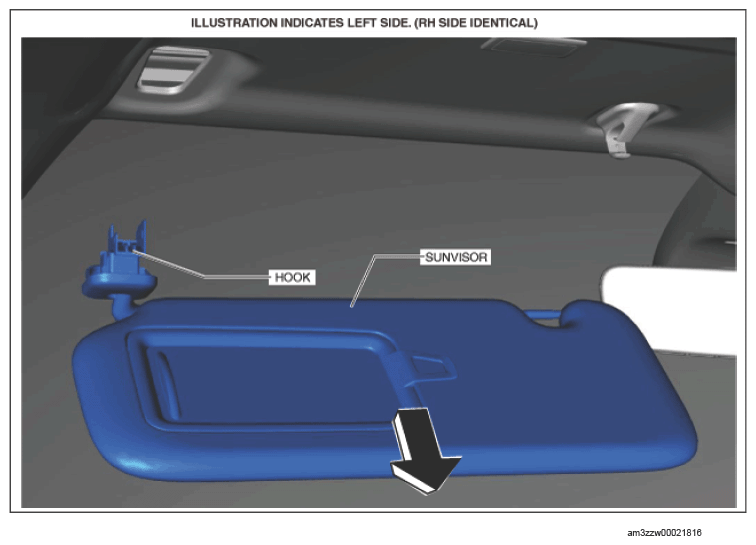

  5. Move the sunvisor in the direction of the arrow shown in the figure and detach the hook.
    G14584055Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the vanity mirror illumination connector.
  7. When removing the center adapter, perform the following procedure:

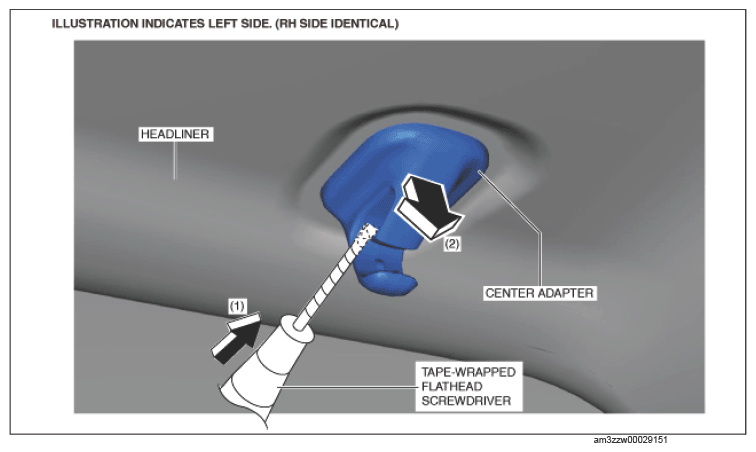

    1. Using a tape-wrapped flathead screwdriver, press the center adapter tab in the direction of arrow (1) shown in the figure, and remove the center adapter in the direction of arrow (2).
    G14584056Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
