Dashboard Disassembly/Assembly [(Us)]: Notes

Disassemble in the order indicated in the table.

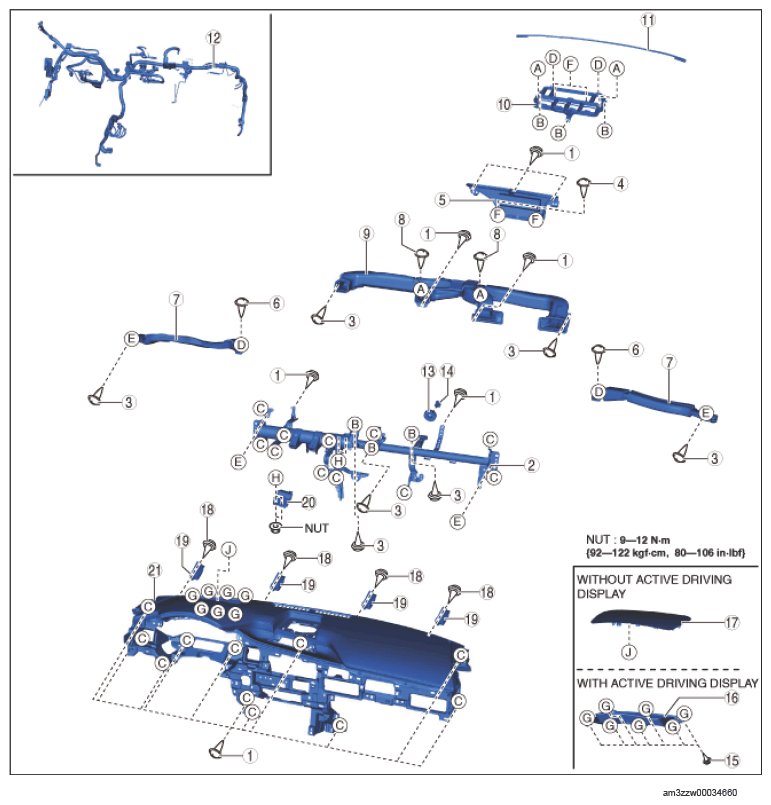

Fig 1: Exploded View Of Dashboard With Torque Specification

G14583887

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

Component No.	Refer to
1	Screw
2	Dashboard member
3	Screw
4	Screw
5	Duct No. 2
6	Screw
7	Demister duct
8	Screw
9	Center duct
10	Duct No. 1
11	Seal tape
12	Wiring harness
(See	Dashboard Wiring Harness Removal Note.)
13	Cushion rubber
14	Member junction
15	Screw (with active driving display)
16	Hole cover (with active driving display)
17	Hole cover (without active driving display)
18	Screw
19	Guide pin
20	Dashboard bracket (without active driving display and with dashboard bracket)
21	Dashboard

Assemble in the reverse order of disassembly.

NOTE:

When replacing the dashboard, remove the following parts and install them to the new dashboard.
1. Passenger-side air bag module (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
2. Front center speaker (with Bose ®) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
3. Global positioning system (GPS) antenna (with global positioning system (GPS)) (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
4. Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
5. Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION [(US)] .)
6. Driver monitoring camera unit (with driver monitoring system) (See DRIVER MONITORING CAMERA UNIT REMOVAL/INSTALLATION [(US)] .)
