Cruise Control Switch Inspection
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)]
.)
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.]
.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.]
.)
- Disconnect the clock spring connector (part wiring harness-side).

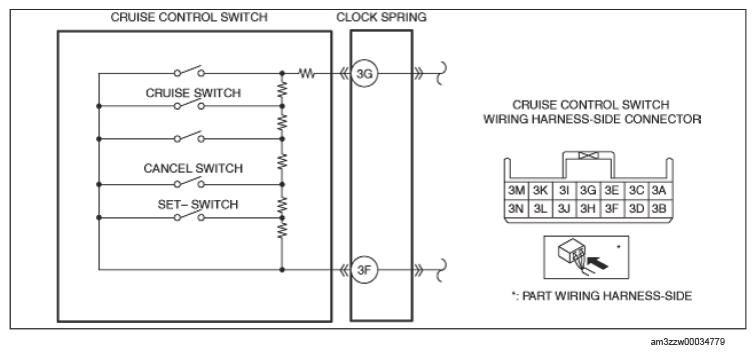

- Measure the resistance between clock spring terminals 3F and 3G (part wiring harness-side) using a tester.
 Courtesy of MAZDA MOTORS CORP.
|
| Switch condition |
Resistance (ohm) |
| Cruise switch held at on |
Approx. 60.4 |
| CANCEL switch held at on |
Approx. 301.3 |
| SET- held at on |
Approx. 602.3 |
| Neutral |
Approx. 1, 489.3 |

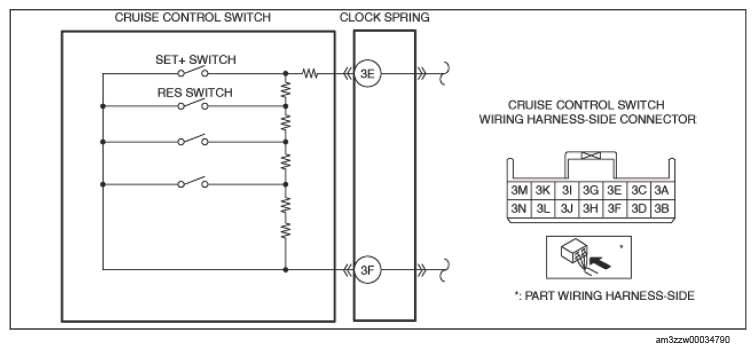

- Measure the resistance between clock spring terminals 3E and 3F (part wiring harness-side) using a tester.
 Courtesy of MAZDA MOTORS CORP.
|
| Switch condition |
Resistance (ohm) |
| SET+ switch held at on |
Continuity |
| RES switch held at on |
Approx. 60.4 |
| Neutral |
Approx. 1, 489.3 |

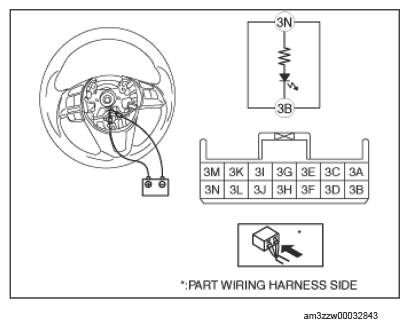

- Apply battery positive voltage to clock spring terminal 3N (part wiring harness-side), and terminal 3B (part wiring harness-side) to ground.
 Courtesy of MAZDA MOTORS CORP.
|
- Verify that the LED in the steering switch turns on.
