Air Hose Installation Note

  1. Install the air hose as shown in the figure.

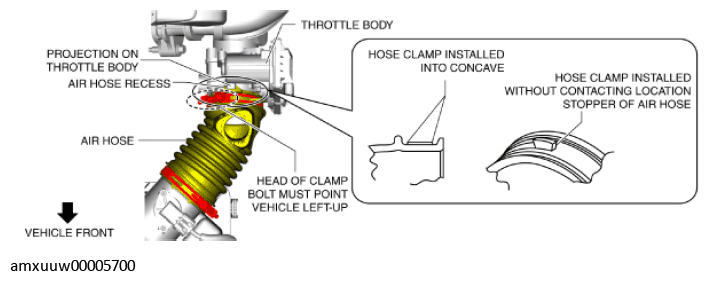

    Throttle body side

    G11274494Courtesy of MAZDA MOTORS CORP.

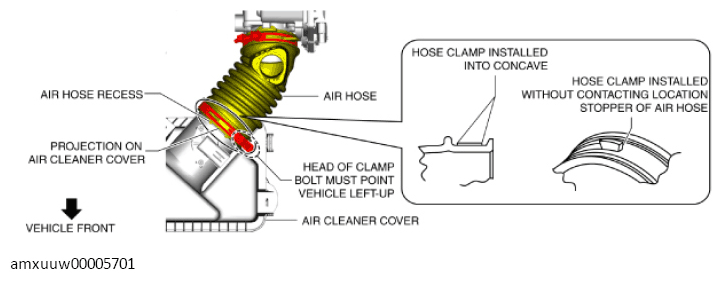

    Air cleaner side

    G11274495Courtesy of MAZDA MOTORS CORP.
