On-Board Diagnostic Wiring Diagram [Auto Leveling Control Module]
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

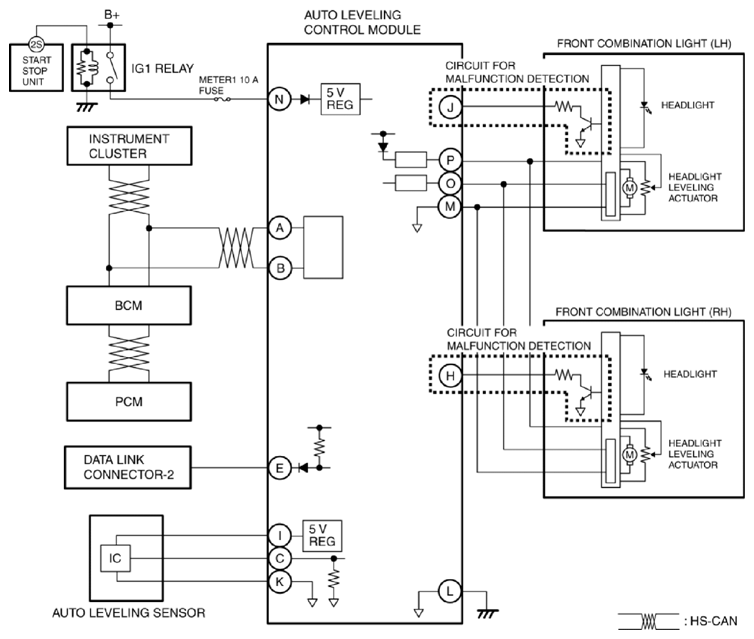

Fig 1: Auto Leveling Control Module Wiring Diagram
