Intake-Air System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

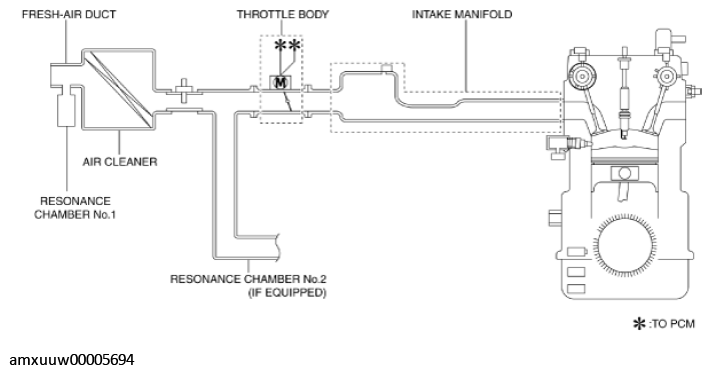

Intake-Air System Diagram
Courtesy of MAZDA MOTORS CORP.
