Water Pump Component Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolt shown in the figure.

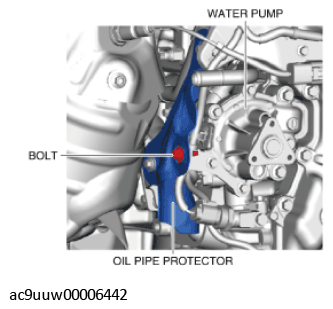

Fig 1: Oil Protector Bolt And Water Pump
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- When removing the water pump component, be careful not to apply excessive force to the oil pipe protector because it may deform the oil pipe protector.
Remove the wiring harness clip shown in the figure.

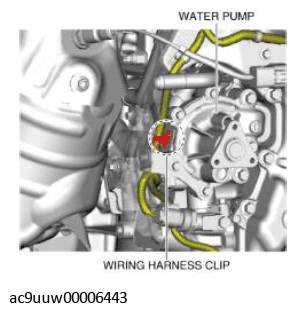

Fig 2: Wiring Harness Clip And Water Pump
Courtesy of MAZDA MOTORS CORP.
Remove the engine oil pressure sensor/engine oil temperature sensor. (See ENGINE OIL PRESSURE SENSOR/ENGINE OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
Place a container under the engine to collect the engine coolant remaining in the engine.
Slightly loosen the three water pump component bolts shown in the figure and collect the draining engine coolant into a container.
CAUTION:
- Do not remove the water pump component completely at this time because the engine coolant remaining in the engine will drain out.
After the engine coolant stops draining, remove the water pump component as shown in the figure.

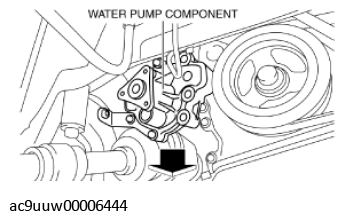

Fig 3: Removing Water Pump Component

Courtesy of MAZDA MOTORS CORP.
