Without Power Liftgate (PLG)

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (See

      LIFTGATE RECESS REMOVAL/INSTALLATION.)

    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

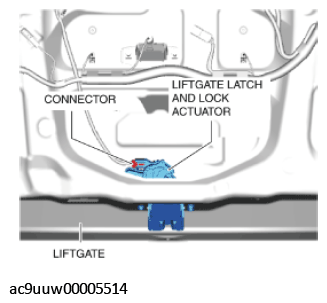

    Fig 1: Liftgate Latch And Lock Actuator Connector
    G11432745Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

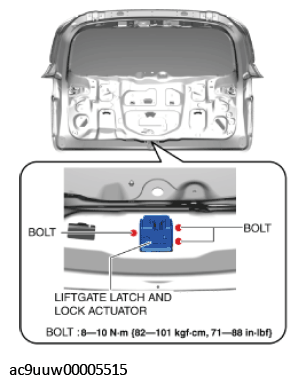

    Fig 2: Liftgate Latch And Lock Actuator Bolts With Torque Specifications
    G11432746Courtesy of MAZDA MOTORS CORP.
  5. Remove the liftgate latch and lock actuator from the liftgate.

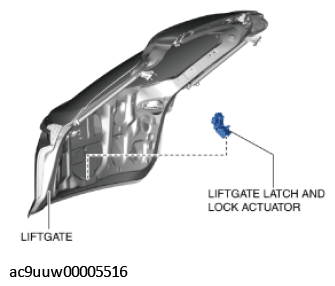

    Fig 3: Removing Liftgate Latch And Lock Actuator From Liftgate
    G11432747Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
