Oil Pump Driven Sprocket Removal Note

  1. Mark the following parts as shown in the figure.
    • Oil pump driven sprocket
    • Oil pump chain
    • Balancer unit sprocket
    G11436492Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The marks will be used as alignment marks when installing the oil pump driven sprocket.
  2. While locking the oil pump against rotation as shown in the figure, remove the oil pump driven sprocket installation bolt.
    G11429666Courtesy of MAZDA MOTORS CORP.

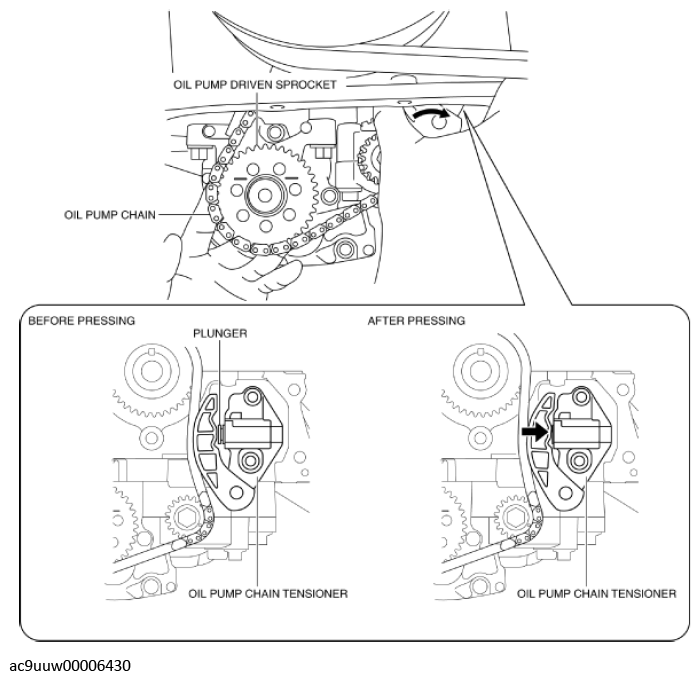

  3. While pressing the oil pump chain in the direction of the arrow shown in the figure, remove the oil pump driven sprocket.
    G11436494Courtesy of MAZDA MOTORS CORP.
