Relay And Fuse Block Disassembly/Assembly

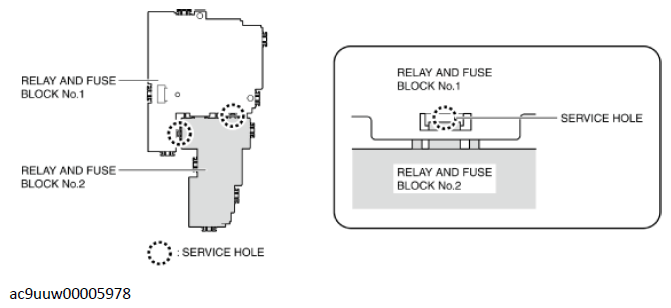

- Insert a tape-wrapped flat head screwdriver into the service hole in the position shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|

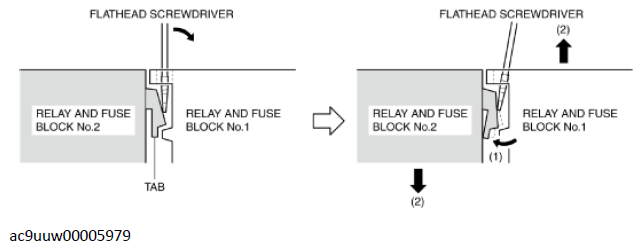

- While pressing the tab of relay and fuse block No. 2 in the direction of the arrow (1) shown in the figure, pull relay and fuse block No. 1 and relay and fuse block No. 2 in the direction of the arrows (2) to detach the tab of relay and fuse block No. 2 from relay and fuse block No. 1.
 Courtesy of MAZDA MOTORS CORP.
|
- Detach all tabs of relay and fuse block No. 2 from relay and fuse block No. 1, and remove relay and fuse block No. 1 from relay and fuse block No. 2.
- Assemble in the reverse order of disassembly.
