Bolt and Nuts Installation Note

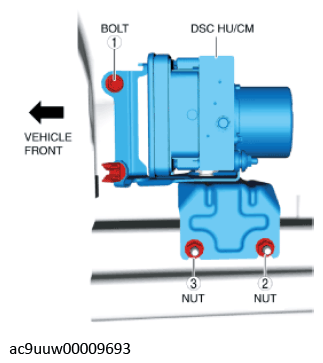

- Install the bolt and nuts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
